Port Luwuk

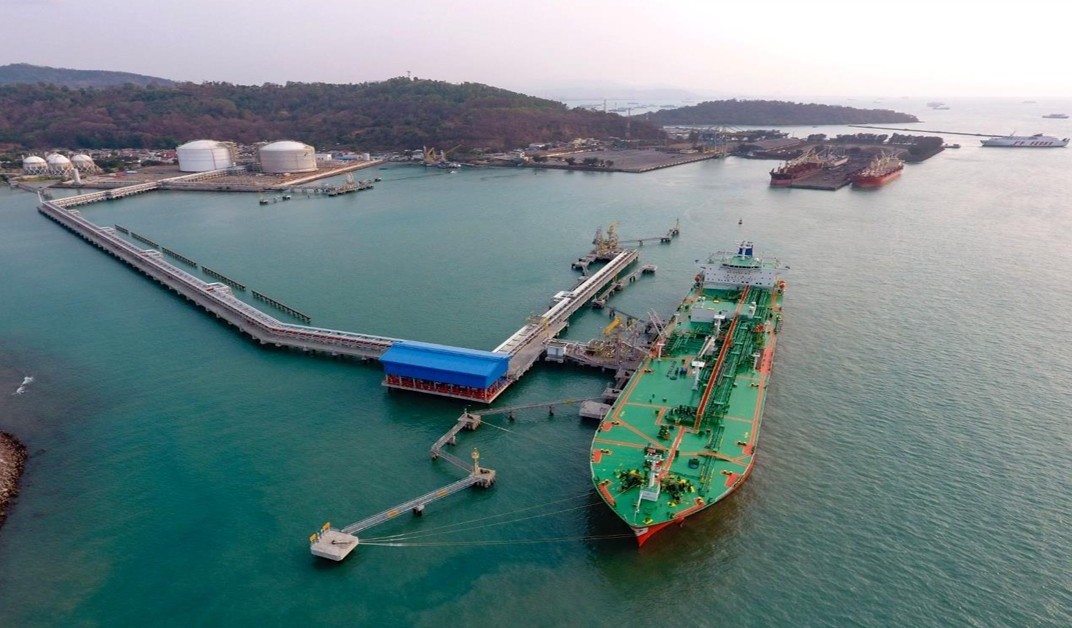

Pertamina Oil Terminal Luwuk is a private terminal owned by PT. Pertamina (Persero) – Marketing Operation Region VII and operated by Pertamina Marine Region VII Luwuk. Located within Luwuk Port in Lalong Bay, the terminal serves the loading and unloading of Premium, Solar (HSD), Avtur (Jet A-1), and Pertamax.

Location Lalong Bay, Luwuk, Banggai, Central Sulawesi, Indonesia

Terminal Pertamina Oil Terminal Luwuk

Berth 1 Operational Jetty

Operation 24 Hours Operation

Vessel Max 6,500 DWT, Min/Max 79 – 110 meter LOA, Min Parallel Body Length 42 meters

Timezone UTC +08:00 (Central Indonesia Time / WITA)

Overview

This booklet is addressed to Masters, owners, operators, and agents of vessels calling at Pertamina Oil Terminal Luwuk. It provides minimum requirements for safe, pollution-free cargo transfer operations. It does not relieve the vessel or Master of responsibility for safe berthing, mooring, and sailing. Vessels not complying with requirements may be denied berthing or asked to leave.

Facilities | Services

Facilities

Berth & Containment Facilities:

1 Jetty (Sea Water type, pile-supported concrete cap)
Cement containment area at manifold platform and receipt headers
Fire extinguishers at the berth (wheeled and handheld units)
Fire water and foam hydrants along the jetty trestle

Emergency & Pollution Response:

Oil spill response equipment and containment booms
Pertamina Luwuk Fire Brigade

Available at This Terminal:

Fresh water supply available (via local company, upon request through terminal or agent)
Tug assistance available (normally stationed near Luwuk Port)

Transportation Facility:

Dedicated exit route for crew, connecting the jetty to the highway (walking through tank areas is prohibited)

Services

Pilotage voluntary service in the waters of Peleng Strait and Luwuk Port
Tug assistance
Terminal-assisted mooring
Ship/Shore Safety Checklist inspection
Pre-transfer conference between vessel PIC and terminal PIC
Radio communication service
Oil Spill Response Team
Firefighting response

Vessel Information

Depth Alongside Berth 8.5 meters
Safe Draft 7 meters
Height of Jetty approx. 2 meters
Controlling UKC – Approaching Berth max. 1.2 meters
Controlling UKC – Alongside max. 0.8 meters
Min/Max LOA: 79 – 110 meters
Minimum Parallel Body Length 42 meters
Max DWT 6,500 tons
Jetty Type: Jetty (Sea Water)
Seabed Type: Coral, sand and mud
Entrance Channel: 1 mile long, 100 meters wide; depth 6 – 7.5 meters
Pilotage: Voluntary
Tug Assistance Available

Mooring Configuration:

1 Head Line
3 Breast Lines
2 Spring Lines

Port Regulations

PPE Requirement

Vessel crew on the berth must wear a hard hat, safety shoes, and coverall/life vest.

Smoking Regulation

Smoking is prohibited within the entire terminal property.

Safety Inspection

Vessels are subject to Terminal Safety Inspection; failure to pass may result in the vessel being asked to leave the berth.

Berthing Safety

Approach angle ? 5°, approach velocity ? 0.3 knots; hand steering required, auto-pilot prohibited unless approved by terminal.

Drugs, Alcohol & Firearms Policy

No alcohol, illegal drugs, or firearms are allowed within the terminal, except those carried by authorized law enforcement.

Shore Leave Rules

Long-sleeve shirt, safety helmet, and safety shoes required; no walking through tank areas; no photography; minimum 50% of crew must remain onboard.

Security Access

Access is limited to personnel, crew, pre-approved contractors, government agencies, agents, and inspectors; visitor lists must be submitted 24 hours in advance.
