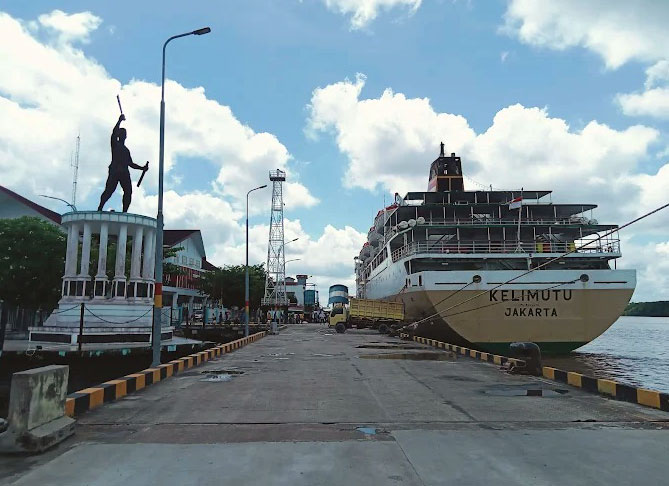

Port Pangkalan Bun
- Kabupaten Kotawaringin Barat, Kalimantan Tengah

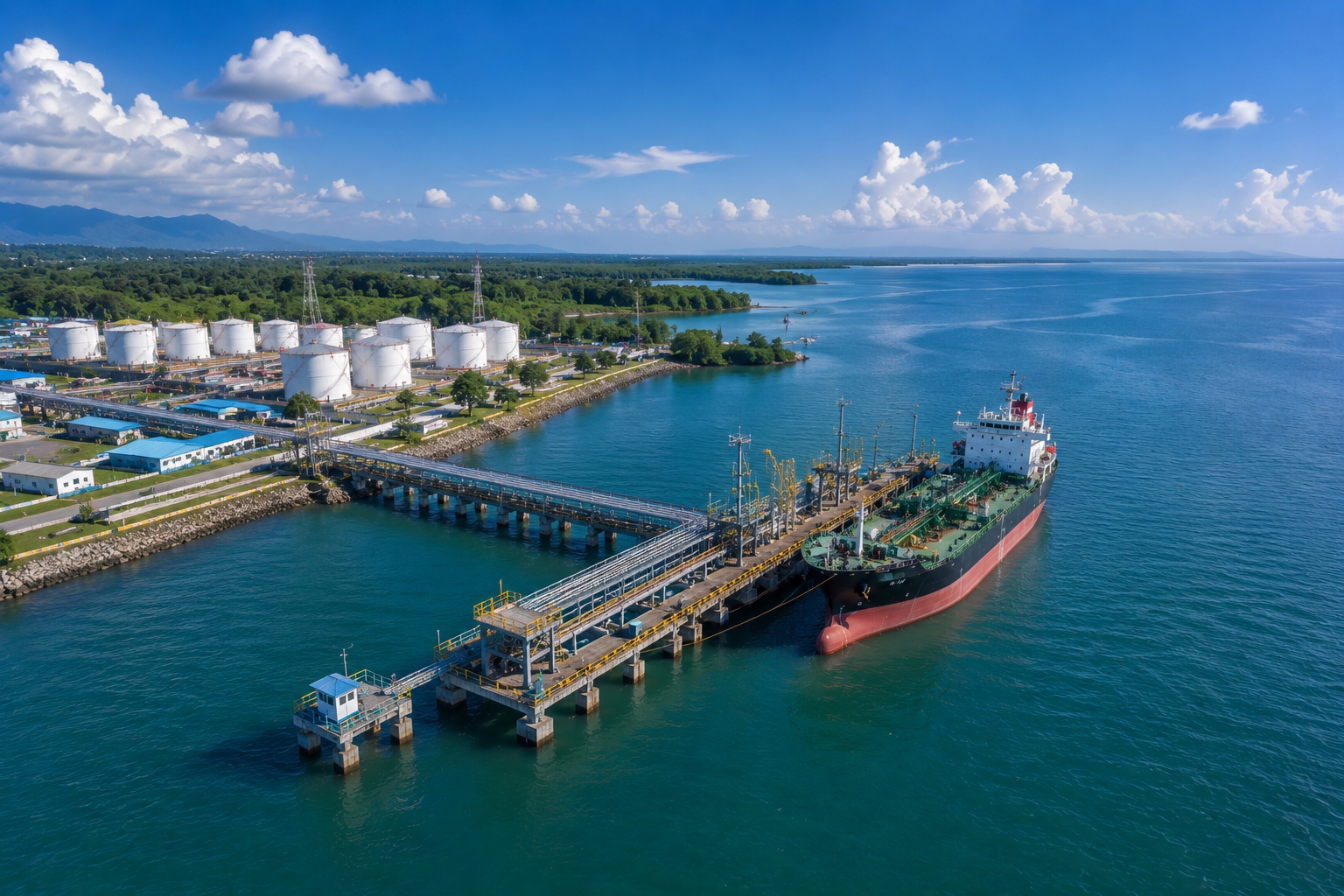

Santan Marine Terminal is an offshore crude oil, condensate, and LPG loading terminal operated by Pertamina Hulu Kalimantan Timur (PHKT), located in the Makassar Strait off the coast of East Kalimantan. The terminal consists of a Single Buoy Mooring (SBM) for crude oil and condensate, and a jetty for LPG loading.
Santan Marine Terminal (Pertamina Hulu Kalimantan Timur)
1 SBM (Crude Oil/Condensate), 1 LPG Jetty
24 Hours Operation
Crude Oil/Condensate: Min/Max 30,000 – 125,000 DWT, Min/Max 130 – 250 m LOA; LPG: Min/Max 1,000 – 3,500 DWT, Min/Max 70 – 100 m LOA
UTC +08:00 (Central Indonesia Time / WITA)
Pertamina Hulu Kalimantan Timur operates the Santan Marine Terminal for crude oil, condensate, and LPG (propane and butane) in the Makassar Strait. The terminal follows the international standards of ISGOTT, OCIMF, and IMO/IMPA for mooring, cargo transfer, and pilotage operations, and enforces a zero-tolerance drug and alcohol policy for all personnel involved in tanker operations.
Vessels must keep firefighting appliances ready for immediate use, maintain fire main pressure, and have fire hoses laid out at the manifold area throughout cargo operations.
Nominated vessels must be cleared through the Company Vetting System prior to berthing, and are subject to final inspection by the Mooring Master upon boarding.
Nominated vessels must be cleared through the Company Vetting System prior to berthing, and are subject to final inspection by the Mooring Master upon boarding.
Scuppers must be effectively plugged during loading, and any oil spillage or leakage must be reported immediately to the Mooring Master and contained without delay.
All orders and instructions between ship and terminal must be repeated back to confirm understanding, ensuring effective and safe cargo transfer communication.
